High Lift Garage Door Conversion

This article will discuss high-lift garage door modifications. We'll go over the advantages, measurement techniques, and DIY conversion procedures. A high lift garage door conversion might not be the best option for you. Perhaps you are undecided whether to complete the task yourself or hire a professional service. Hopefully, after reading the details provided below, all of your queries will be addressed.

What is an Arizona High Lift Garage Door Conversion?

You may be sacrificing useful vertical space in your garage if you have a normal garage door installed in Arizona but the ceiling is higher than average. You keep the same garage door because you are merely converting it, and you will only be extending the existing garage door tracks. The track is moved closer to the ceiling during a high lift garage door conversion, providing extra clearance.

You will need twelve inches of clearance for installing the equipment (such as drums, spring bars, end bearing plates, etc.) in addition to the desired clearance height to complete a high lift garage door conversion nearby. If you only have a foot or so of

On This Page

• Why you might need a high lift garage door
• How to measure for high lift garage doors
• Parts and Tools required
• Safety Considerations
• Step by Step for DIY installation
• Maintenance
• Contact us

Why Might You Need a High Lift Garage Door Near You?

Your garage's ceiling space is important real estate that you can make good use of.

Installing a two- or four-post car lift is the main justification for upgrading a regular garage door to a high lift. These are certainly something you've seen at the mechanic; the vehicle is driven onto a platform and raised into the air.

You can easily perform maintenance on your car by installing a car lift. But more crucially, it will support two automobiles stacked on top of one another, allowing one to leave the driveway and benefit from improved winter protection. While the second car is parked below, one is elevated on the platform.

You might prefer to use the additional vertical space in your garage for storage rather than adding more automobiles, depending on your needs.

How to Measure for High Lift Garage Doors

If you’ve decided to go ahead and convert your existing garage door, the first thing you will need to do is take some measurements.

• Height and width of your garage door – This is self-explanatory; use a tape measure to determine your garage door’s dimensions.
• Track-to-jamb dimensions – Using your tape measure, find out the distance from the garage door jamb to the rear of the top of the vertical track.
• Measure the radius of the horizontal track – This can be achieved by positioning a level at the junction where the vertical and horizontal track meets and then with your tape measure, determine the measurement between the level and the base of the horizontal track; typically, this is 12″ or 15″.
• Measure the floor-to-ceiling dimensions – At either end of the garage door opening, measure the floor to ceiling distance. If you find that they vary in height, then use the side with the shorter distance as your measurement. Any space that will be required above the door, such as lights, needs to be subtracted.
• Measure from the floor to the top of the horizontal track – Use your tape measure to get the measurement from the floor to slightly after the end of the track’s curved section.
• Determine the weight of your garage door – The final step is to weigh your garage door; for best results, use analog scales. Digital scales can show inaccurate information as they typically don’t change the weight displayed after it is initially calculated.

You should weigh the garage door with the spring unwound, and if the surface of the garage is uneven, lay some boards under the analog scales. On occasion, the garage door gets stuck on the track, so giving it a bit of a shake should ensure that you get the correct weight.

Parts and Tools Required for Your High Lift Garage Door Conversion in Arizona

Once you have your measurements, you may buy a kit for a high lift garage door that includes every component needed for your conversion. Purchasing the parts separately can be less expensive, but you must be certain that you are buying the right parts for your specific garage door.

The hardware of the lift mechanism needs to be changed when installing a high lift conversion; for example, more power will be needed to raise the garage door higher. It will be necessary to install an additional vertical track, along with new cables, drums, torsion springs, bearing plates, and support brackets.

You'll probably need the following equipment in addition to the components from your garage door high raise kit: an adjustable wrench, winding bars, a ladder, a drill, a measuring tape, socket wrenches, a hacksaw, an electric impact wrench, and vice grips. Depending on how your garage door is currently set up, different tools and components may be needed.

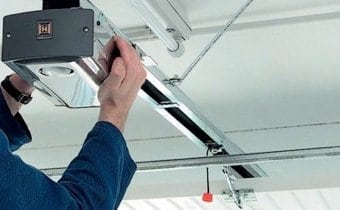

The garage door opener is a final factor to consider. Standard openers are frequently installed above garage door tracks, with a cable rail fastened to the header above the door. After switching to a high lift, you might discover that the old garage door opener won't fit again. You might need to put in a new jack-shaft opening in this situation, which is hidden to the side.

Step By Step DIY High Lift Garage Door Conversion Instructions

These are the basic instructions for carrying out a high lift garage door conversion. Please, leave the job to the professionals if you have any doubts.

Step 1: Remove the Torsion Hardware

If you have an existing garage door opener, begin by removing it.

Using winding bars unwind the existing spring, take your time, and have safety in mind when carrying out this step. Then remove the spring anchor bracket and any carriage bolts, remove the end bearing plate, and the lag that protects it and the cable from both the cable drums.

Next, detach the shaft from the door and set it on the floor. Remove the bolts that fix the cone to the spring anchor bracket. The spring anchor bracket can be kept for reuse later. Loosen the set-screws, slide the end bearing plate, cable drum, and torsion spring from the shaft. You can also reuse the end bearing plate if it isn’t showing signs of wear. If it hasn’t come out already, remove the bushing inside the stationary cone for reuse. After loosening the set screws, remove the other cable drum and the end bearing plate.

Hammer a nail in the head slightly above the garage door and using a vise grip, bend it over the garage door’s top. This will prevent the top section of the door from falling when the horizontal track is removed.

Loosen the bolts on either side of the garage door that fixes the horizontal track to the angle iron. Remove the bolts that connect it to the flag bracket and keep hold of the track, so it doesn’t fall when the bolt is removed. Remove the bolt that secures it to the angle iron and then lower the track to the floor, repeat the same process on the other side of the garage door and remove the track hangs.

Step 2: Installation of The High Lift Hardware

Now we need to do a little prep. With a pen, make a mark on the inside of the flag bracket at the bottom, continue this line up the bracket’s length, and up to the ceiling using a level to ensure that it’s plumb. Repeat on the other side and remove the flag brackets.

If you didn’t purchase a pre-assembled high lift garage door conversion kit, you’d need to assemble the tracks. Position the high lift track extension over the roller and use the line you drew before to line it up. Ensure that there are studs behind the drywall of your garage; if not, you might need to add some to secure the hardware: Mark and pre-drill the areas where the new section of the high lift track will be secured.

Secure the lower section of the high lift track to the vertical track, the high lift angle iron to the garage wall, and the bottom bracket to the jamb. Secure the conversion kit to the vertical track, adjust and tighten the bolts on the top roller carrier, so it’s secured to the top fixture. Then repeat on the other side.

Step 3: Install the Track and Bearing Plate

Calculate the high lift conversion's distance by starting at the back of the horizontal track. Your door will open at this height in addition. The length of the horizontal track that remains after the garage door has been opened is then added. The garage door may not fully open if this amount of track is cut off. Deduct around a foot and note the new distance on the track. After that, cut both track segments at the made mark.

Using a hacksaw, cut two pieces of angle iron into lengths of about two inches. Drill holes in one piece of angle iron, insert it inside the end of the horizontal track, and fasten it with two bolts. Apply this to both tracks' portions.

The horizontal track angle needs to be extended to reach the angle of the high vertical lift. With a carriage bolt, connect the 12-inch angle to the horizontal angle for both horizontal tracks. To ensure it fits, put the horizontal track on top of the high lift track. Connect it to the high lift plate with a bolt but don’t tighten it. Secure the angle extension to the vertical angle with a bolt. Secure the horizontal track base to the high lift plate if the high lift track and horizontal track overlap and file the end of the high lift track.
Connect the end bearing plate and the angle iron with bolts, tighten the bolts at the base of the plate, and for the end bearing plate pre-drill a hole. With a lag screw, fix the top of the end bearing plate to the wall and tighten the bolts connecting it to the angle iron.

Position the new cable drum over the bearing race, install the horizontal track for the other side, and the end bearing plate. Secure the angle iron to the garage ceiling, connect the hangs and repeat for the other horizontal track. Then remove the nail you placed earlier above the door of the garage.

Step 4: Installing the Spring Anchor Bracket

This step is fairly brief; the shaft needs to be slid into the end bearing plates, line up the spring anchor bracket, so it is in the shaft’s center and pre-drill the holes where you will secure it. In the top hole, install one lag screw and secure the bracket to the header, remove the shaft and place it on the garage floor.

Step 5: Assembling the Shaft Hardware

Slide the bushing you kept from earlier on to the shaft and then slide the new spring onto the shaft, followed by the new cable drums on either side. Lift the shaft to the top of the garage door and insert into the end bearing plates.

Step 6: Installing the Torsion Spring

Insert bolts in the stationery cones and in the slots on the spring anchor brackets and secure them. Remove the existing cable from the base fixture and install the new on both sides of the garage door. Slide the cable drum to the bearing race and tighten the set screws. Once the cable is inserted into the drum, twist the shaft so the cable wraps around the drum. Repeat with the other cable drum.

The final step is to wind the torsion spring, which is the reverse of the process for the first step. When you order a high door garage kit, it should provide you with how many times you need to wind the spring.

Maintaining Your Arizona High Lift Garage Door

Now you have your high lift garage door installed; you need to maintain it properly. Garage door mechanisms are made up of numerous moving parts; if they fail, you could end up with a door that can’t open or close. We’ve discussed the dangers of garage door springs, and if they wear down, it could damage property or injure you or a loved one.

Routine lubrication is important for the smooth running of regular or high-lift garage doors. It will prevent friction, which is the primary cause of wear on garage doors. Metal scraping against metal is a pretty distinct sound, so you’ll soon be alerted when your high-lift garage door needs lubricating!

These are the important areas you should be focusing on when performing regular maintenance for your high-lift garage door.

Tracks – Your garage door tracks need minimal maintenance; you just need to keep them free of any debris that could hinder the rollers’ movement. All you need to do is wipe the length of the tracks with a damp cloth from time to time.

Rollers and hinges – maintenance of your rollers and garage door hinges will depend on what material they are constructed from. If you have nylon rollers, you only need to lubricate the inner bearings, being sure to wipe off any excess oil from the nylon material. You can lubricate all the components for high-lift garage doors with metal rollers, but again, you’ll want to wipe away any excess, so it doesn’t drip on your garage floor or vehicle.

For the door hinges, if they are made of plastic, you can clean them with a damp cloth or, if made of metal, add a little oil to the pivot points.
Once you have carried out your maintenance and all the parts are lubricated or cleaned, then raise and lower the high lift garage door a few times. This will spread the lubricant evenly and will also highlight if you have any further issues that might need fixing.

Contact an Experienced Arizona High Lift Garage Door Conversion Company Near You

A high lift garage door conversion will give you that extra space you might need so that you can store an additional car inside or just extra stuff. It doesn’t require replacing your existing garage door. It is a job that can be carried out by an experienced DIY enthusiast who understands the safety requirements needed. If you have read our guide and are still unsure if you have the ability to complete the job without damage to yourself or property, then make a smart move and hire a garage door specialist for peace of mind.
